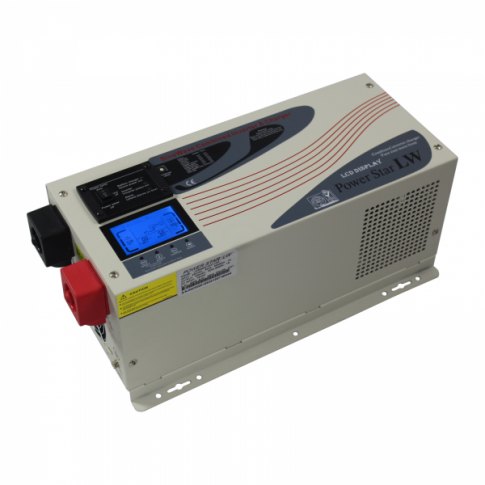

Photonic Universe 3000W 48V low frequency pure sine wave off-grid inverter (peak power 9000W)

Product Description

Photonic Universe are proud to offer this 3000W 48V low-frequency, pure sine wave inverter with an in-built 35A battery charger, and a peak power level of 9000W.

What is an inverter?

An inverter is a device which converts battery output (DC, or direct current) into 230V AC mains electricity (alternating current). 230V AC is the type of electricity supplied by utility companies to run standard domestic appliancessuch asa TV, fridge, radio, lights or to charge a laptop / mobile phone etc.If you have a battery, connecting a power inverter will enable you topower household appliances in areas with no access to mains electricity; such as in a motorhome, caravan, boat, farm or any otherremote location. Inverters are also perfect for off-grid and back up systems for accidental power cuts.

This is a pure sine wave type of inverter, which means that the 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output isfar superior than square sine wave or modified sine wave output for running appliances. This is because:

- It issuitable for a broader range of appliances (for example, applianceswith electric motors can notbe powered by modified sine wave inverters)
- It is more efficient compared to modified sine wave inverters.

What is a low-frequency inverter?

Low-frequency inverters have a few advantagescomparedtohigher frequency inverters; namely their peak power capacity and their reliability. Low-frequency inverters can operate at a peak power level ofup to 300% of their nominal power level for several seconds, while high-frequency inverters can operate at 200% of nominal power for a fraction of a second. Low frequency inverters operate using transformers (as opposed to electronic components such as MOSFETs for high frequency inverters). This results in a stronger, sturdier inverter which is less prone to damage. If you would like to learn more about low frequency inverters, check outour article Introduction to low frequency inverters.

Key features include:


A fast built-in battery charger (with charging current options ranging from 7A to 35A)to charge your batteries from mains, with advanced 4-step progressive charging and several battery types to choose from. If required, the battery charger can be permanently switched off.
Option to selecteither DC or AC priority mode. InAC priority mode, if the inverter is connected to the mains, batteries will be constantly charged by mains power (until fully charged).Appliances will also be powered by mains by default. In DC priority mode, appliances will always be powered by the batteries, even if the mains input is connected. Once the battery charge drops below acertain threshold, mainsinput will automatically kick-in to charge batteries and power appliances.
Power saving mode which allows the inverter to work in "power on demand"standby mode by only generating power when load is connected (saves energy and battery power)
UPS (Uninterrupted Power Supply) system which provides constant power for your appliances when the inverter is working in AC (mains)mode and mains power supply shuts down (the inverter will automatically switch to the battery and your appliances will not switch off)
Bypassmode when the mains power is connected (in AC priority mode).In this mode,the AC mains input is automatically linked to ACoutput of the inverter, thereforebypassing theDC-to-AC energy convertingcircuits of the unit, increasing the efficiency and making the quality of the AC outputthe same asAC input.
Detailed LCDdisplay which shows voltages, battery status, current operating mode and other information
Ability to accept input ACpower from a generator (recommended nominalpower of the generator is twice therated power of the inverter)
Various settings allow the user to customise the inverter (output voltage, output frequency, input voltage thresholds, battery type and capacity)




The 3000Wnominal power and 9000Wpeak power ratings mean that this inverter is suitable for most household appliances (such as fridge, microwave, TV, power tools, vacuum cleaner, kitchen appliances except a cooker etc).

This inverter alsofeatures important protection and safety features, such as overload, over-temperature, low batteryand overcharge protection.

Click on the Details and Specifications tab for more information
