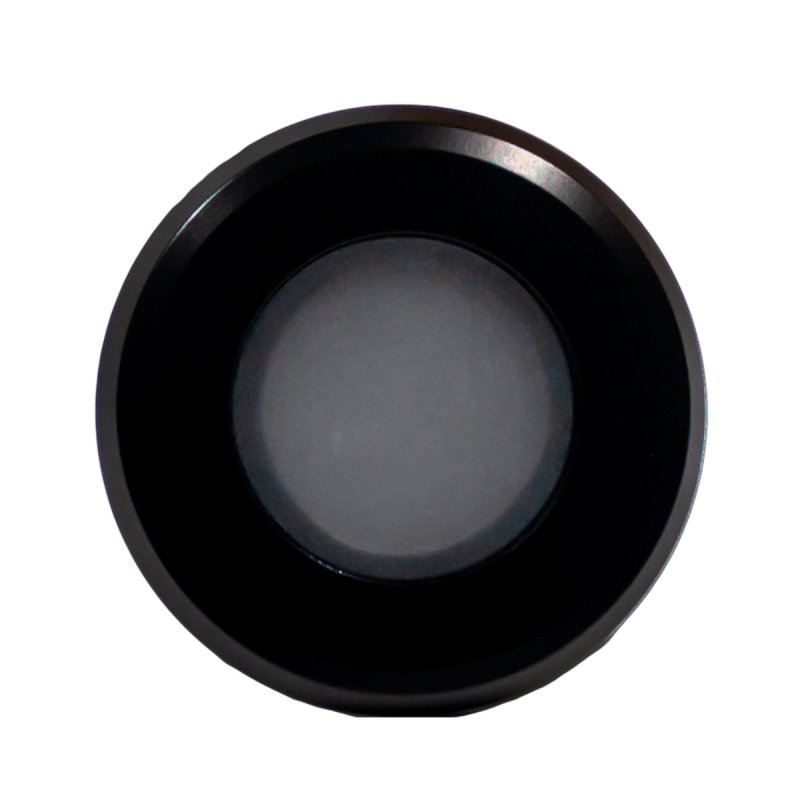

Shadow-Caster SCM-DLX Down Lights
Item: SCM-DLX-CC-BK
MPN: SCM-DLX-CC-BK
The SHADOW-CASTER® large marine LED down light SCM-DLX is perfect for lighting overhead areas of the interior and exterior of your boat or yacht.
login to saveProduct Description
At 3” overall diameter, its wide angle spread of light and all-glass reveal makes this the ideal light for T-Tops, cabins, towers and more. Easily control the brightness and color from a standard switch.
The SCM-DLX series is available in 3 light output choices: single color white; 3 color (white, blue and red) as well as a full color version. Choose from three beautiful color finishes – white, black and polished chrome.
KEY FEATURES
- Soft start technology ramps the brightness up gently over 2 seconds
- Power toggle feature to set brightness and change color
- True white LED for best color performance
- 120 degree viewing angle
- High efficiency switch mode power supply
- Waterproof low-profile aluminum housing
- All-Glass reveal provides a modern look
- White, black or polished chrome finish
- 3-Year Warranty
SPECIFICATIONS
- 300 lumen output
- 120° beam angle
- 3 watt power draw
- 10-30 volts input
- 250mA at 12 volts, 125mA at 24 volts
- 6200 Kelvin cool white color temperature
- 3” (76mm) OD, 0.175” (4mm) mounting height
- 2″ mounting hole
- Durable glass lens
- IP67 waterproof design
- Color change version includes Shadow-NET® interface for control
CONTROL OPTIONS
POWER TOGGLE CONTROL
Quickly toggle power source to advance to next color or brightness level.
SHADOW-NET® CONTROL
Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® Light Commander control module (SCM-LC-N2K-PLUS-V2) & app.
Dramatically enhanced lighting capabilities through your existing MFD allows for unlimited shades of color and fading, dimming, strobe rate, music sync, multiple zones and much more.
COLORS AVAILABLE / PART NUMBER
Full Color – 12 color lights
SCM-DLX-CC-WH (white housing, white window)
SCM-DLX-CC-BK (black housing, black window)
SCM-DLX-CC-CHR-WH (white housing, chrome window)
SCM-DLX-CC-CHR-BK (black housing, chrome window)
White, Blue & Red – 3 color lights
SCM-DLX-WBR-WH (white housing, white window)
SCM-DLX-WBR-BK (black housing, black window)
Great White – 1 color light
SCM-DLX-GW-WH (white housing, white window)
SCM-DLX-GW-BK (black housing, black window)
